Cowboy CB341 Medium Duty Leather Sewing Machine

The Cowboy CB341 leather stitcher
Specifications and Pricing

Model: CB341

Arm Length: 10.5"

Arm Diameter: 3.0" + tapered

Maximum Foot Lift: 1/2"+

Max Sewn Thickness: 3/8"+

Needle: #135x16/17: #16-#24

Thread Sizes: #46 - #207

Bobbins: Large M style

Vertical axis hook with drop-in bobbins

Max Speed: 2500 spm

Max Stitch Length: 3.15 per inch

Pull-down reverse stitch length lever

Safety clutch protects hook from damage from thread jams

Adjustable speed, heavy duty servo motor, with 3:1 speed reducer

U shaped cut-out table, on casters

Magnetic mount, LED flex lamp

Uses standard type 111 presser feet

Accessories & upgrades available

Head weight: ~92 pounds

$2395.00, plus shipping

Removable flatbed conversion table attachment: $95

Also available mounted on an adjustable height pedestal table for $150 more

CB341 Medium to heavy duty cylinder bed walking foot leather sewing machine for bags, shoes, belts, carpets, furniture, upholstery and leather craft.

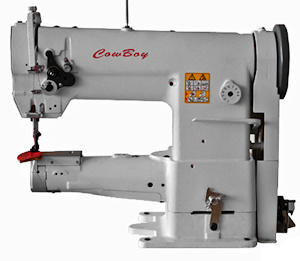

The Cowboy CB341 sewing machine, pictured here (close-up view), is capable of sewing from about 1/16" up to 3/8" of leather, webbing, or denim, with up to #207 bonded nylon or polyester thread.

The machine has a 10 1/2 inch long cylinder arm (a.k.a: free arm) and uses the same needles and presser feet as the Singer 111w155 and most other walking foot machines. The throat cover plate is cut off close to the left end of the arm, allowing you to sew gussets and other projects that have narrow flanges (with narrow feet). You can let shaped items hang down and sew along the back, very close to the edge.

The CB341 features a rotary stitch length dial and a pull down reverse lever to lock your stitches. The forward and backward stitches are preadjusted to match up. The positive compound feed is performed by a combination of a bottom feed dog, timed with a moving needle and moving inside presser foot. It has alternating presser feet, with the outside foot used to secure the work between stitches. This ensures that all layers move together and remain in alignment. It also guarantees consistent stitch length, due to the needle, inner foot and feed dog all pulling the material at the same ratio.

The Cowboy CB341 is an ideal machine for sewing the edges of belts, straps, pancake holsters, shaped and round cases, purses, hats and caps, backpacks and heavy garments (like jeans). This is also a perfect machine for sewing around arm holes, hems and cuffs on both cloth and leather garments, as the circular work can freely revolve around the cylinder arm.

Other uses for this machine include saddle bags, motorcycle seats, small animal harnesses, leashes and collars, concealed gun holsters, nylon webbing tow ropes, rifle slings, and even for installing zippers.

Every new CB341 purchase comes complete with a servo motor, feeding a 3:1 speed reducer, mounted on a U shaped table that you can sit at, with locking ball bearing castors. Also included are four bobbins and one pack of 10 needles (to match your preferred thread size).

The Cowboy CB341 has triple, or compound feed and is perfect for sewing all kinds of leather or vinyl projects, up to 3/8 inch, or so (you can get a bit more). Watch a detailed video presentation showing the CB341 in action.

If you need to sew material that is considerably thicker than 3/8 inch, with thread heavier than #207 (top and bottom), you may want to consider buying our single feed, heavy duty CB2500, or one of our super heavy duty triple feed "441" style machines, with a smooth feed dog and high lift walking feet. Please take a look at the 9" arm Cowboy CB3500, the 10.5" arm Cowboy CB3200, or the 16.5" Cowboy CB4500, or the 25" arm Cowboy CB5500. Three of these large stitchers are capable of sewing over 3/4 inches of leather, while the economical CB3200 is capable of sewing 1/2 inch, with a size 415 thread handling capacity.

See our complete line of Cowboy sewing machines

Call us toll free, at: 866-362-7397 for more information, or to place your order.
