Toledo Industrial Sewing Machines
Cowboy CB-243 Leather Sewing Machine
Bed Length: 16.5"
Maximum Foot Lift: 7/8"
Max Sewn Thickness: 3/4"+
Adjustable Foot Lift: 4 to 8 mm
Needle: #794: #19-#27
replaceable needle plate
Thread Sizes: #92 - #415
Bobbins: same large bobbins as CB4500
Bobbin winder built into machine
Max Speed: 800 spm
Max Stitch Length: 2- per inch
Compound triple feed
Adjustable speed, servo motor with speed reducer pulley
Heavy table on steel k-legs frame
Long neck, hi-intensity flex lamp
Heavy duty thread stand
Accessories & upgrades available
$2895.00, plus shipping
Flat bed leather sewing machines are found in custom leather shops and leather goods manufacturing plants around the World. The are used to sew flat pieces together, or to sew lining layers onto the back of leather belts and straps. Flat bed machines give better control when sewing large bulky panels, or broad straps.

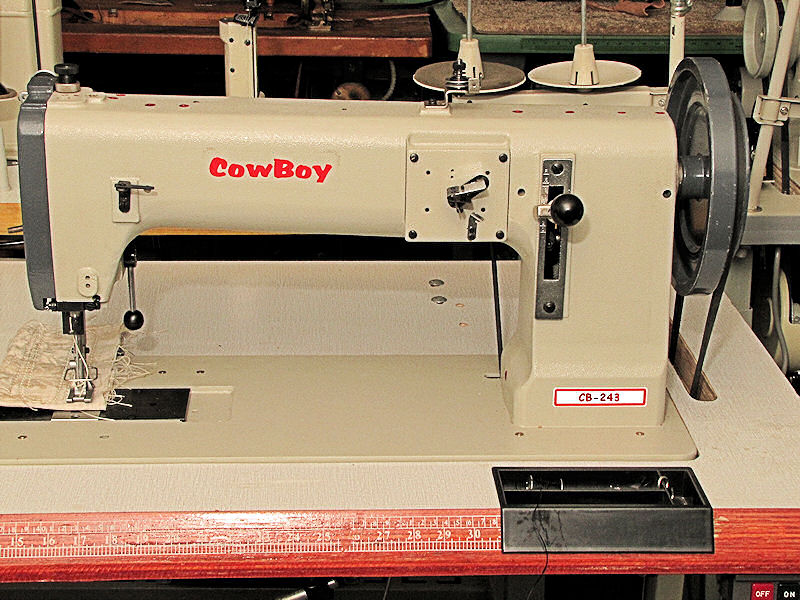

The Cowboy CB-243 leather sewing machine, pictured here (click here for close-up of machine head), is capable of sewing up to 7/8" of hard temper leather, man-made leather substitutes (like "BioThane®"), heavy nylon webbing, Kydex, and even nylon or plywood lined items, with up to #415 bonded nylon or polyester thread.
The Cowboy CB-243 is based on the design of the "441" type machines, such as the Cowboy CB4500. It has compound, triple feed, with smooth presser feet and feed dog (no teeth). The pressure spring is very strong and can easily hold down a full load of 7/8 inch of hard leather. This machine uses the same bobbins, needles, edge guides and presser feet as the Cowboy cylinder arm models CB-3500, 4500 and 5500.
The CB-243 has a bed length of 16.5 inches, inside the body, making it ideal for sewing large items, including large, Western style gun holsters, before they are shaped. It would also be a great machine for sewing briefcase panels together, with leather over plywood. This machine can also be used to sew auto upholstery in thicknesses that standard walking foot machines cannot handle.

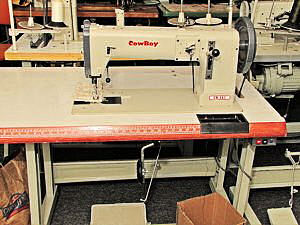

Every new CB-243 purchase comes complete with a powerful servo motor and a 3:1 speed reducer pulley, mounted under a thick wooden table, which is bolted onto a heavy duty k-legs steel frame. The speed reducer system provides tremendous punching power at very slow speeds. Also included are four bobbins and one pack of 10 needles (to match your preferred thread size).
If you need to sew material that is not flat, or which has raised portions close to the edges, such as gun holsters, knife sheaths, handcuff pouches, ammo cases, saddle bags, etc, please check out our Cowboy cylinder arm sewing machines. These cylinder arm heavy leather sewing machines are available in 3 arm lengths: the 9" arm Cowboy CB3500, the 16.5" Cowboy CB4500, and the 25" arm Cowboy CB5500. All three of these large stitchers have compound, triple feed, with high lift and are capable of sewing up to 7/8 inches of leather, with a size 415 thread handling capacity.
Call us toll free, at: 866-362-7397 for more information, or to place your order.
Photos of the pressor feet available for the Cowboy CB-243 sewing machine.
