Cowboy CB3500 Heavy Leather Sewing Machine
Arm Length: 9"
Arm Diameter: 3 9/16"
Maximum Foot Lift: 1 1/16"
Max Sewn Thickness: 7/8"
Needle: 7x3 or 794: #18-#27
Thread Sizes: #69 - #415
Bobbins: 7/8" x 1" large capacity
Max Speed: 800 rpm
Max Stitch Length: 3 per inch
Reverses into same holes
Adjustable speed, heavy duty servo motor
Sleeve bearing 3:1 speed reducer, with grease cup
Height adjustable stand on casters
Long neck, hi-intensity flex lamp
From $2095.00 USD, plus shipping
Cowboy industrial sewing machines are built as tough as tanks and are capable of sewing thick leather, cloth, webbing, bioplastic and other materials, with heavy thread.

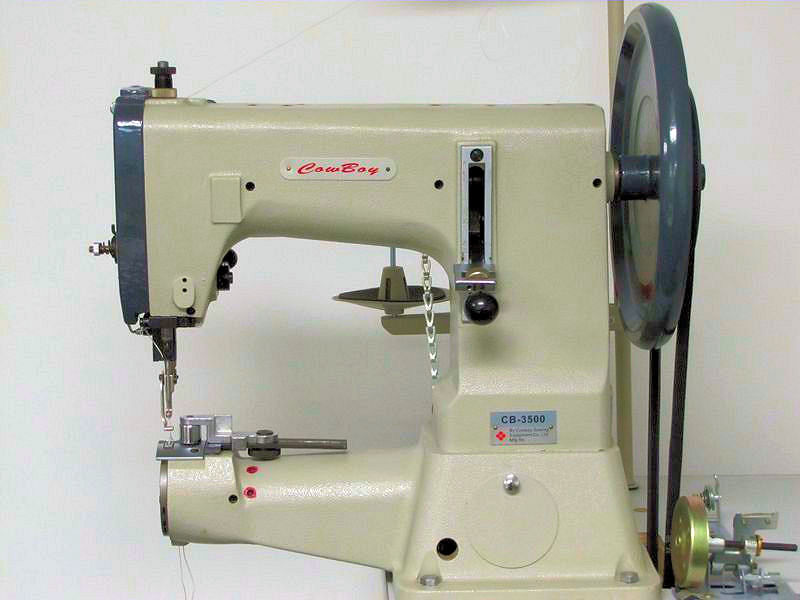

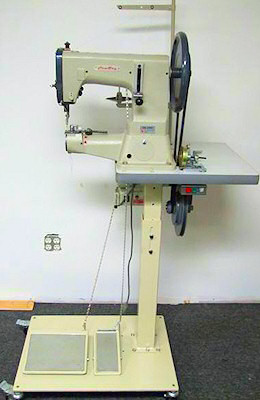

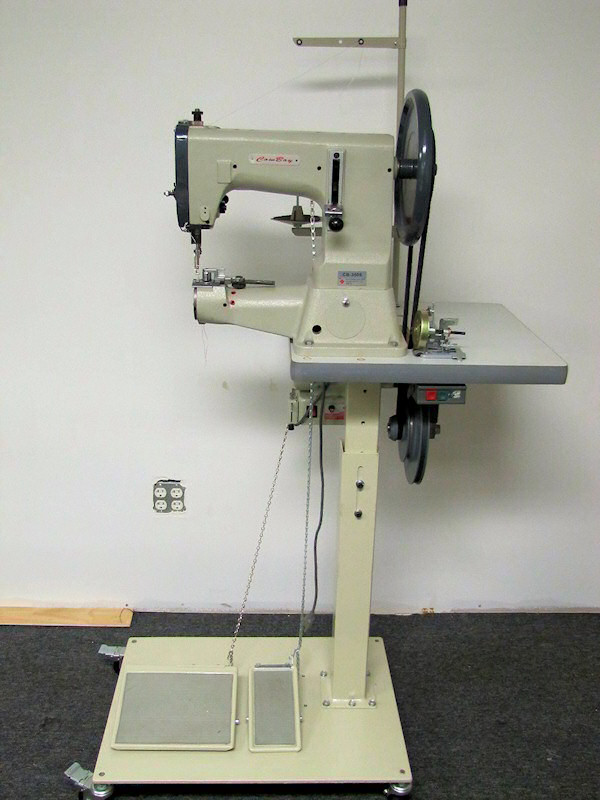

The Cowboy CB3500 leather stitcher, pictured here (click here for close-up of machine head), is capable of sewing up to 7/8" of saddle leather, with up to #415 bonded nylon or polyester thread.
It has a cylinder arm of 9 inches in length; ideal for sewing straps, holsters, cases and bags. The feed is performed by a compound, triple feed walking foot, which ensures that all layers will move together. The pressor feet, known as Harness Feet, are made of stainless steel, as are the throat cover plates. A blanket foot set, with teeth on the bottom, is available, instead of, or in addition to the harness feet, for those sewing cloth items and horse blankets, rather than only leather. See more photos of our optional pressor feet and throat plates for the CB3500.
Every new CB3500 purchase comes complete with a motor and table, choice of regular or harness pressor feet, one standard throat plate and feed dog to match feet, and a swing-away roller edge guide. Also included are four bobbins and one pack of 10 needles (to match your preferred thread size). We offer an accessories package for an additional price, containing our raised and slotted throat plates, additional pressor feet and extra needles and thread.
Uses for this machine include saddlery, leather and bioplastic harnesses and bridles, gun holsters, ammo pouches, gun belts, weight belts, nylon webbing tow ropes, animal collars and leashes.
The Cowboy CB3500 is available in two other arm lengths: 16.5 inchs (Cowboy CB4500) and 25 inches (Cowboy CB5500). All three of these large stitchers have the same specifications for sewing thickness and needle and thread handling capacity.
The Cowboy cylinder arm sewing machines all feature a strong industrial table, with a powerful servo motor and a speed reducer.
Call us toll free, at: 866-362-7397 for more information, or to place your order.
Photos of the pressor feet, throat plates and edge guide available for the Cowboy CB3500, 4500 and 5500 sewing machines.
