Cowboy CB5500 Heavy Leather Sewing Machine

Specifications and Pricing

Model: CB5500

Arm Length: 25"

Arm Diameter: 3 9/16"

Maximum Foot Lift: 1 1/16"

Max Sewn Thickness: 7/8"

Needle: 7x3 or 794: #18-#27

Thread Sizes: #69 - #415

Bobbins: 7/8" x 1" large capacity

Max Speed: 800 rpm

Max Stitch Length: 3 per inch

Reverses into same holes

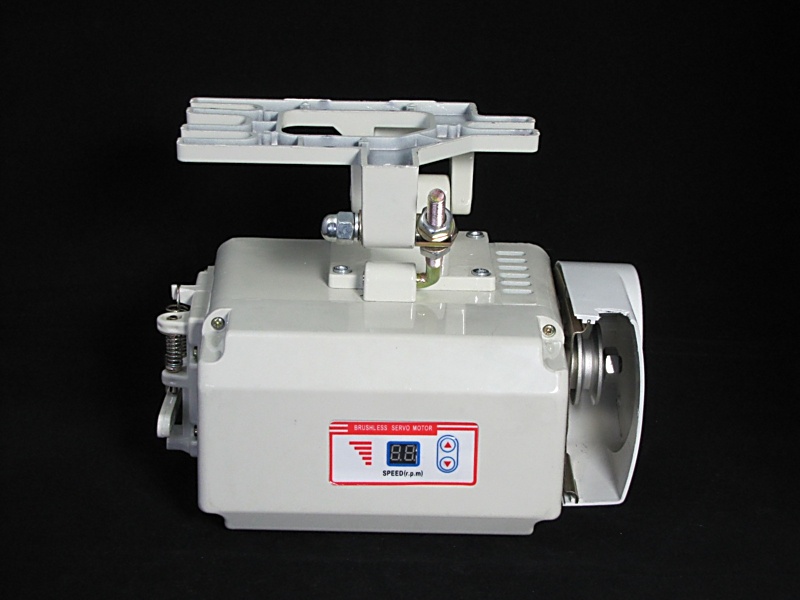

Adjustable speed, heavy duty servo motor

Ball bearing speed reducer

Height adjustable stand on casters

Long neck, hi-intensity flex lamp

Accessories & upgrades available

From $3295.00 USD, plus shipping

The Cowboy CB5500 leather stitcher

Cowboy industrial sewing machines are built as tough as tanks and are capable of sewing thick leather, cloth, webbing, bioplastic and other materials, with heavy thread.

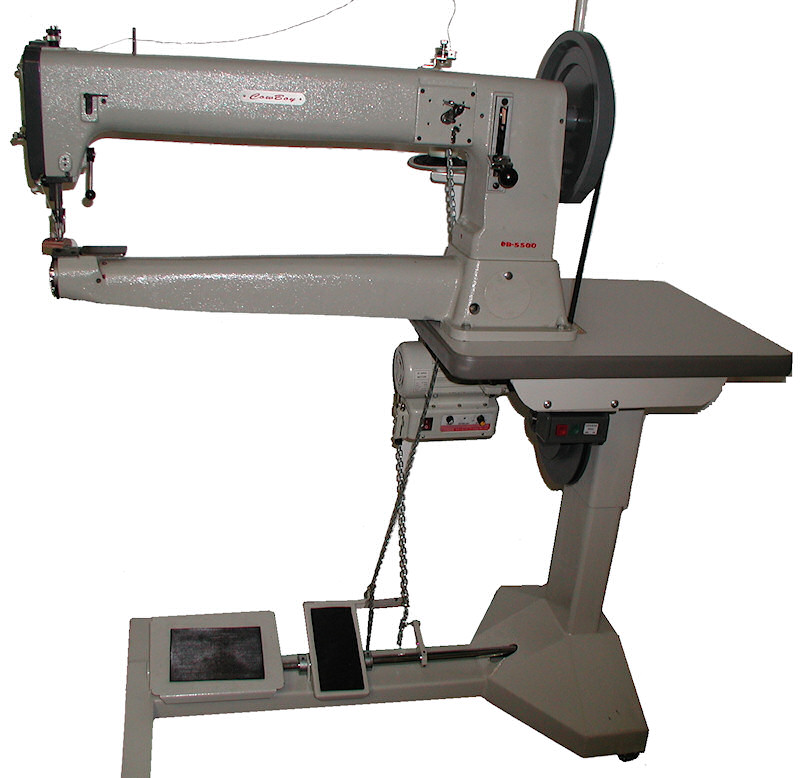

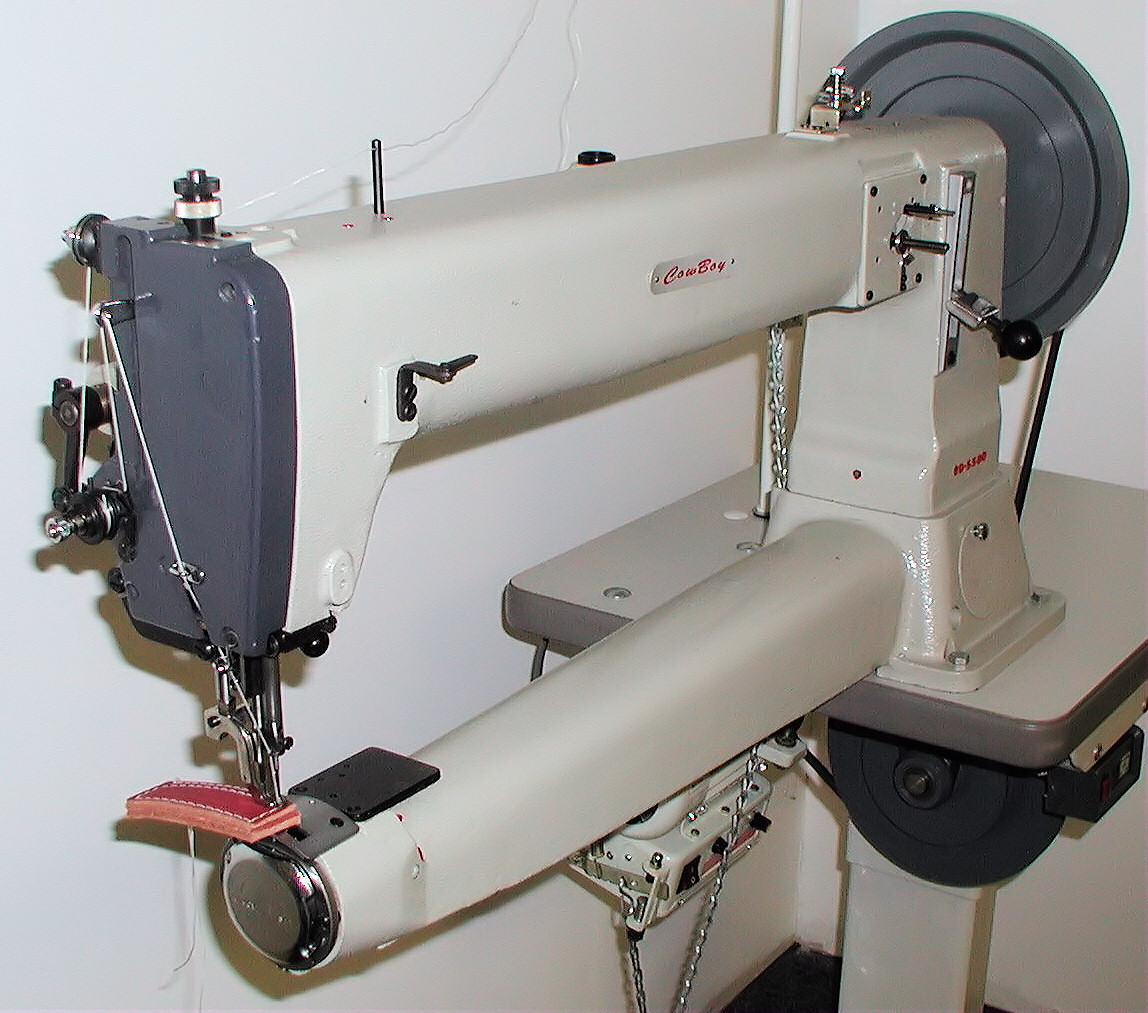

The Cowboy CB5500 leather stitcher, pictured here (Close-up 1) (Close-up 2), is capable of sewing up to 7/8" of saddle leather, with up to #415 bonded nylon or polyester thread.

It has a cylinder arm of 25 inches in length; ideal for sewing horse saddles, or other large projects that have more than 17 inches to the right of the needle. The feed is performed by a compound, triple feed walking foot, which ensures that all layers will move together. The pressor feet, known as Harness Feet, are made of stainless steel, as are the throat cover plates. A blanket foot set, with teeth on the bottom, is available, instead of, or in addition to the harness feet, for those sewing cloth items and horse blankets, rather than only leather. See more photos of our optional pressor feet and throat plates for the CB3500, 4500 and 5500 models.

Every new CB5500 purchase comes complete with a motor and table, choice of regular or harness pressor feet, one standard throat plate and feed dog to match feet, and a swing-away roller edge guide. Also included are four bobbins and one pack of 10 needles (to match your preferred thread size). We offer an accessories package for an additional price, containing our raised and slotted throat plates, additional pressor feet and extra needles and thread.

Uses for this machine include saddlery, leather and bioplastic harnesses and bridles, gun holsters, ammo pouches, gun belts, weight belts, nylon webbing tow ropes, animal collars and leashes.

The Cowboy CB5500 is available in two other arm lengths: 9 inchs (Cowboy CB3500) and 16.5 inches (Cowboy CB4500). All three of these large stitchers have the same specifications for sewing thickness and needle and thread handling capacity.

The Cowboy cylinder arm sewing machines all feature a strong industrial table, with a powerful servo motor and a speed reducer.

See our complete line of Cowboy sewing machines

Call us toll free, at: 866-362-7397 for more information, or to place your order.

Photos of the pressor feet, throat plates and edge guide available for the Cowboy CB3500, 4500 and 5500 sewing machines.
